Selected in accordance with the demand for electricity
Work Time (h):
Packaging & Delivery
1.5KVA 3.5KVA 5KVA Size: 570*315*300 mm
Weight: 19kg 22.5kg 28kg
7.5KVA 10KVA Size: 765*329*298 mm
Weight: 48kg 50kg
Shipped in 7 days after payment

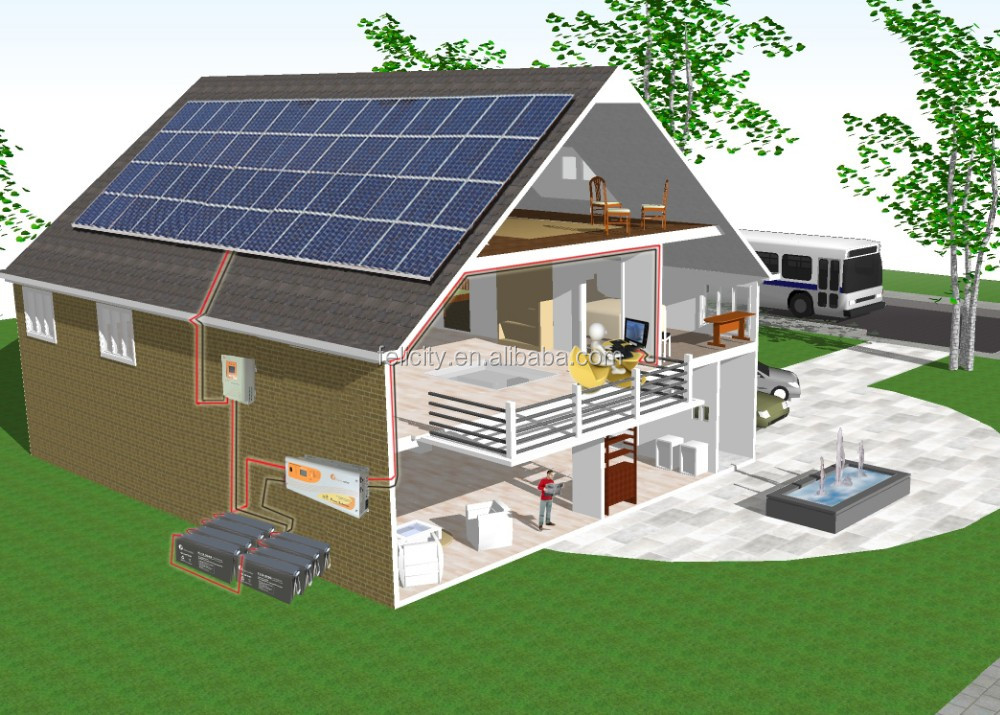

Solar inverter, or converter, or PV inverter converts the variable DC output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be off-grid electrical network. It is a critical balance of system–component in a solar power system, allowing the use of ordinary AC-powered equipment.
1. LCD Display, intuitively shows working performance 2. Low decibel cooling fan, high efficiency no noise 3. Fault alarm warning 4. Easy installation 5. Remote control 6. RS232 Connect the computer to monitor the inverter performance

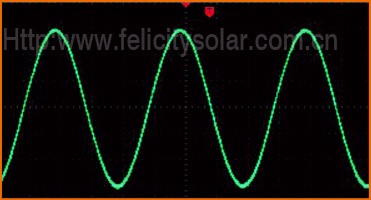

1. Adjustable charge current 2. Optional battery type 3. Pure sine wave output voltage, can load big power appliances
4. Widely voltage frequency range, suitable all over the world usage 5. 3 stage charge, prolong battery lifespan

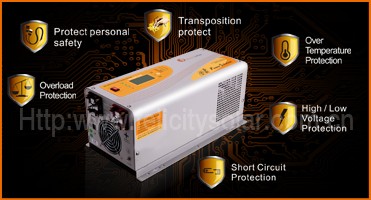

1. Protect personal safety 2. Temperature compensation, protect battery 3. Battery overcharge, discharge protect 4. Inverter over load, output short circuit protect 5. Over temperature protect 6. Transposition protect 7. AC input, output over-current protect 8. Charge short circuit protect

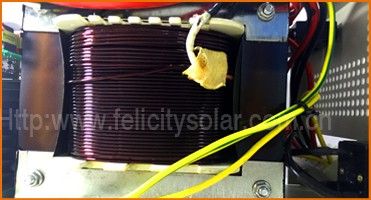

1. We used full copper material in the inverter transformer, line, etc. There are many supplier use half copper or aluminum in the market.
2. In order to insure the quality of our inverter. We use enough electrolytic capacitor in the inverter.
3. We choose the IR filed-effect tube in the inverter. It's famous brand in the market.
Line Mode Specification
Input Voltage Waveform
Pure Sine Wave (Utility or Generator)
Nominal Input Voltage
110V-120V / 220V- 240V
Max AC Input Voltage
140V / 270V
Nominal Input Frequency
50Hz / 60Hz (Auto detection)
Output Voltage Waveform
As same as input waveform
Inverter Mode Specification
Output Voltage Waveform
Pure Sine Wave
Rated Output Power
Nominal Output Voltage
110V-120V / 220V- 240V ± 10%
Nominal Output Frequency
50Hz / 60Hz ±0.3Hz
Capable of starting electric motor
Nominal DC Input Voltage
Charge Mode Specification
MAX Charge Current
Charge Current Regulation
Charge current adjustable: 25%, 50%, 75%, 100%(Optional)
Battery Type Selection
Select the right type of battery to charge (e.g: GEL, AGM, Open lead acid, Sealed lead acid, etc )
Three stage: Boost CC (constant current stage)---Boost CV (constant voltage stage)---Float(contact voltage stage)

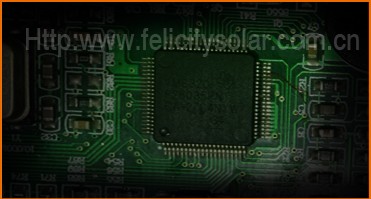

Reasonably Structured DSP Intelligent Chip Enough Power Plate Pure Copper transformaer
We have many certification of our products, CE, SGS, SONCAP, etc.

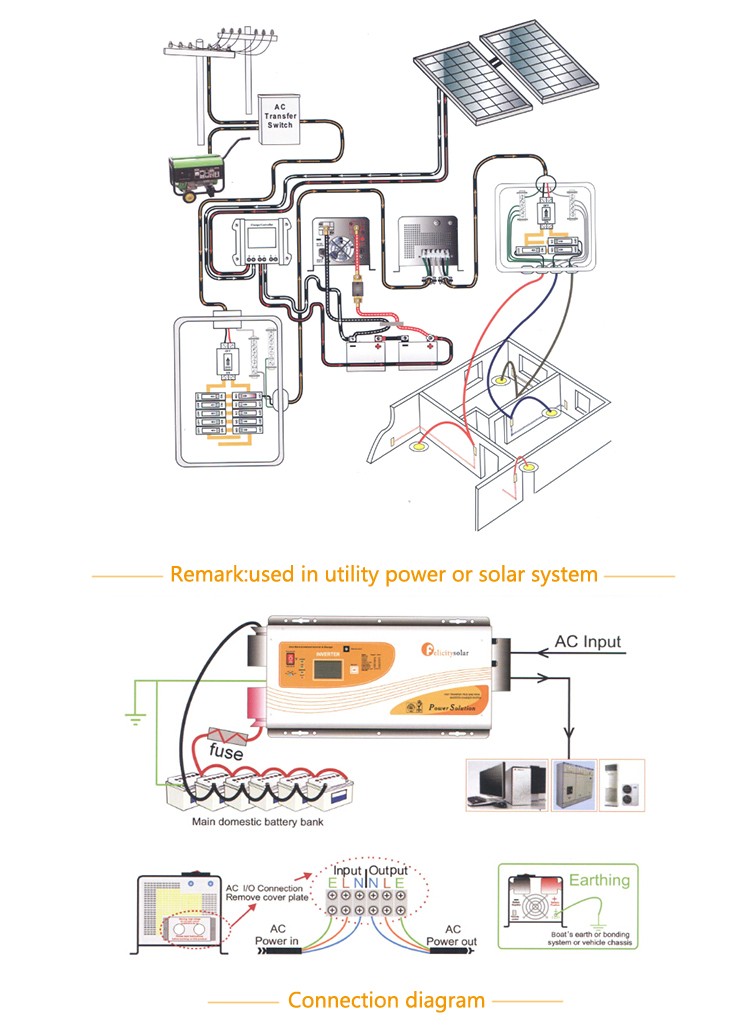

1. Insure the DC voltage of inverter in accordance with the battery voltage. 2. Insure the positive pole (red)of inverter connect with the positive pole (red) of battery, and the negative pole (black) of inverter connect with the negative pole (black) of battery, then tighten the screw. 3. Turn on the inverter and see if it is good, if good then turn off. 4. Connect with AC power / Ground wire, turn on the inverter and see if it is working normally (charge the battery, show charge current) if so, turn off the inverter. 5. Connect with the load/ground wire and turn on the inverter (Power saver auto or Power saver off ). 6. Turn on the Load.
1.5KVA 3.5KVA 5KVA Size: 570*315*300 mm Weight: 19kg 22.5kg 28kg 7.5KVA 10KVA Size: 765*329*298 mm Weight: 48kg 50kg
1.5KVA 3.5KVA 5KVA CBM/CTN:
7.5KVA 10KVA CBM/CTN:
1.5KVA 3.5KVA 5KVA :
20'': 520pcs 40'': 1120pcs
20'': 325pcs 40'': 700pcs
Q :Can we use this inverter with AC electricity?
A :Yes, Felicitysolar pure sine wave inverter can hybrid AC, generator, solar, UPS electricity.
Q :If we use DC and AC electricity both, which one will be first?
A :Felicitysolar pure sine wave inverter is AC first.
Q :How about the efficiency of this inverter
A :Felicitysolar pure sine wave inverter has 80% power efficiency.
Q : What kind of certification of this inverter you have?
A :We have many certification, IEC certification by Beide Compliance Loboratory, SONCAP by CIC,etc.
Q :What is the warranty for the pure sine wave inverter? A :For the inverter, we offer 1 year warranty. Q :What is MOQ for inverter? A :MOQ is 1 PC or mixed Q :What is the terms of payment? A :T/T, L/C,western union, paypal or cash; 30% for deposit, the balance 70% before shipment. Q :What is the delivery time A :3 work day with stock after receiving the payment. No stock, 25 work days after receiving the payment.
Felicitysolar was found in 2007 possessed deep pockets and the professional ability of technology and had formed many modern solar panel production lines, LED street light production lines and the testing systems for solar power and lighting.
Our main market is Africa, we also do other market business, Mid East, Asia, America, etc. We have got a lots of good feedback of our products from our clients, and we will also listen the advice from them to develop our products. It makes us becoming better to provide the best service to our client.
