Guangzhou Felicity solar dc small display counter commercial refrigerator

FOB Reference Price:Get Latest Price
US $630-680 / Set | 2 Set/Sets (Min. Order)
Supply Ability:
10000 Set/Sets per Month
Port:
guangzhou
Report Suspicious Activity
Overview
Quick Details
Power Source:
Solar
Type:
Chest / Deep Freezer
Defrost Type:
Frost-Free
Temperature Type:
Single-Temperature
Door Type:
Swing Door
Door No.:
Double Doors
Certification:
CE, RoHS, SASO
Dimensions (L x W x H (Inches):
1159*526*475mm
Power (W):
100
Voltage (V):
12
Place of Origin:
Guangdong, China (Mainland)
Model Number:
FL-SDE-200L
Brand Name:
Felicity
Model:
FL-SDG-200L
Temperature:
0~10°C fridge; 15°C freezer
Coolant:
R600a,totally CFC free
Isolation:
C-pentane , totally CFC free
Power consuption:
0.68kw/day
weight:
157KG
Warranty:
1.5 year
solar panel:
2 pcs 150w/18v poly
battery:
1 pcs 150ah/12v gel battery
controller:
1 pcs 20ah/12v
Packaging & Delivery
Packaging Details
carton packing
Delivery Time
Shipped in 15 days after payment

200L 12v DC low power consumption deep freezer solar power

Product Description



Brief Introduction


A solar-powered refrigerator is a refrigerator which runs on energy directly provided by solar, and the system include photovoltaic panels,solar controller,solar battery and refrigerator.


Solar-powered refrigerators are able to keep perishable goods such as meat and dairy cool in hot climates, and are used to keep much needed vaccines at their appropriate temperature to avoid spoilage.


Solar-powered refrigerators may be most commonly used in the developing world to help mitigate poverty, supplement the lack of electricity and energy conservation.

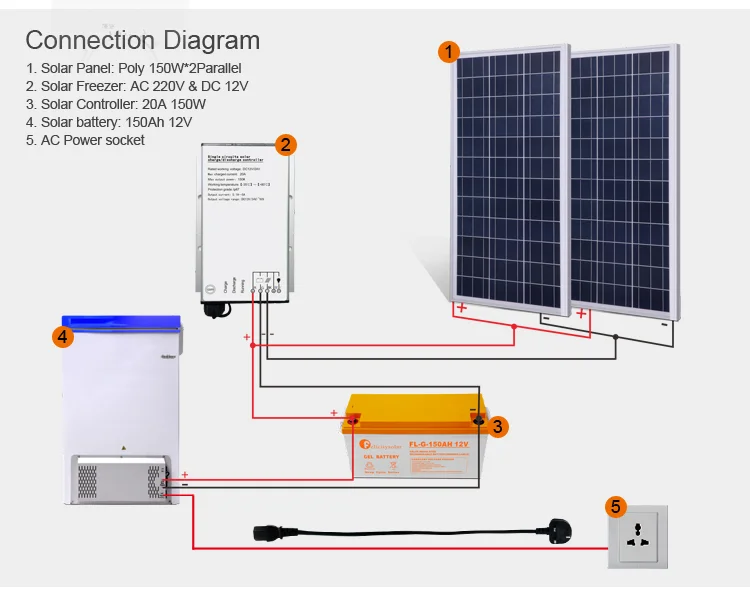

How Solar freezer Work?



Main Features
1. Energy saving, they are energy efficient and can save you money on your power bill.

2. Adjustable leveling legs design, prevent the fridge from leaning due to uneven floor/ground.
3. AC & DC compressor, many companies use the DC motor compressor in the market, it's break easily.





Product Parameters





Model

FL-SOLAR-SDG-118LFL-SOLAR-SDG-182LFL-SOLAR-SDE-200L
Net Capacity118 Liters(89 litres fridge & 29 litres freezer)182 Liters(136 litres fridge & 46 litres freezer)

200 Liters(200 litres freezer)

Temperature0~10℃ fridge:-15℃ freezer0~10℃ fridge:-15℃ freezer.-15℃ freezer
CoolantR600a, totally CFC freeR600a, totally CFC freeR600a, totally CFC free
Power Consumption0.45KWH/days0.54KWH/days0.60KWH/days
Power SupplyAC220V & DC12V

AC220V & DC12V

AC220V & DC12V

Weight of refrigerator33KG39KG36KG
Body size of refrigerator480x560x1160MM500*620*1370MM

950x545x845MM

Packing size of refrigerator505* 600*1212MM525*655*1442MM975*595*887MM
Solar Panel150W 18V *2 pcs150W 18V *2 pcs150W 18V *2 pcs
Battery

150AH 12V*1PC

150AH 12V*1PC

150AH 12V*1PC

Controller20A 12V/24V20A 12V/24V20A 12V/24V



Detail Images





Certifications

 We have already gotten many certifications, e.g.: ISO, IEC, TUV, BV, SGS, SONCAP, Product patent,etc.



Direction Manual





Installation Procedure
https://www.youtube.com/watch?v=ZuMO-JXXBHE

Precautions
1. Avoid installation locations in direct sunlight, or next to stoves, heating, or similar heat sources.
2. The floor at the installation location should be level and flat. Install the device a sufficient distance from the wall so that the lid can open and close unhindered.
3. Do not cover the gap between the lower edge of the cabinet and the floor, because the chiller must be provided with cooling air.



FAQ

 Q1: How many hours the solar refrigerator or freezer can work for ?
A1: It can be used for 24 hours everyday in case of solar and AC electricity together. If just use solar power, it can be use 14-16 hours in case of battery full.
Q2: What's the charging time?
A2: About 6-8 hours under strong sunlight.
Q3: What's the power of the solar refrigerator or freezer?
A3:100W for 118L/182L ; 125W for 200L.
Q4:Why refrigerator or freezer must be level?
A4: If the unit is not level, it may damage the compressor.

Packaging & Shipping



118L: 505*600*1212mm118L: 0.36 CBM 36 KG118L: 70 pcs/150 pcs in 20' GP/40' HC
182L: 525*655*1442mm182L: 0.5 CBM 43 KG182L: 40 pcs/130 pcs in 20' GP/40' HC
200L: 975*595*887mm200L: 0.51 CBM 40 KG200L: 50 pcs/120 pcs in 20' GP/40' HC
